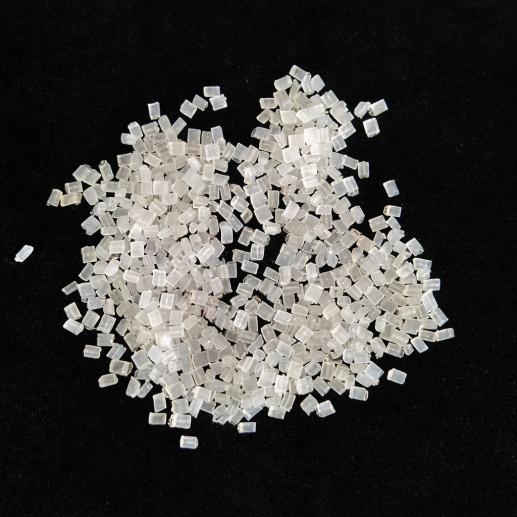

Description
Polyvinylidene Difluoride (PVDF) Resin is a high-performance fluoropolymer known for outstanding chemical resistance, thermal stability, and mechanical strength. It is widely used in demanding applications such as chemical processing, electronics, coatings, and energy systems requiring long-term reliability.
The core strength of PVDF resin lies in its molecular structure, which contains a high proportion of fluorine atoms. These strong C–F bonds provide excellent chemical inertness and thermal stability while maintaining good mechanical performance.
Key features include
● Outstanding resistance to acids, bases, solvents, and oxidants
● Excellent thermal stability with continuous service temperatures up to approximately 150°C
● High mechanical strength and abrasion resistance
● Good UV and weather resistance for outdoor applications
● Inherent flame resistance and low smoke generation
These properties enable PVDF resin to maintain performance integrity even under extreme operating conditions.
Specification
|
Unit |
HD9106 |
||||
|
A |
B |
C |
D |
||
|
Appearance |
Resin/Powder |
||||
|
Melting Index |
g/10min |
1~8 |
8~15 |
15~24 |
24 above |
|
Tensile Strength≥ |
Mpa |
36 |
|||
|
Elongation at Break≥ |
% |
25 |
|||
|
Relative Gravity |
1.77~1.79 |
||||
|
Melting Point |
℃ |
165~176 |
|||
|
Thermal Decomposition≥ |
℃ |
380 |
|||
|
Hardness |
ShoreD |
70~80 |
|||
Typical Applications
● Chemical processing equipment and piping systems
● Wire and cable insulation
● Lithium-ion battery binders and components
● Architectural and industrial protective coatings
● Semiconductor and electronics manufacturing
Advantages
For manufacturers and project owners, PVDF resin delivers clear long-term benefits:
● Reduced maintenance and replacement costs due to extended service life
● Improved operational safety in corrosive environments
● Stable performance with minimal degradation over time
● Compliance with demanding industrial and environmental standards
These advantages help customers lower total lifecycle costs while ensuring consistent product performance.
Characteristics Platform
Quality Control
Packagings
25kg/woven bag, 800kg/pallet
Workshop Gallery
Customer Cases
FAQ
Q1: What processing methods are suitable for PVDF resin?
A: PVDF resin can be processed by extrusion, injection molding, compression molding, and coating techniques.
Q2: Is PVDF resistant to strong chemicals?
A: Yes. PVDF offers excellent resistance to most acids, bases, solvents, and oxidizing agents.
Q3: Can PVDF be used outdoors?
A: Yes. It has excellent UV and weather resistance, making it suitable for long-term outdoor applications.
Q4: What is the typical service temperature of PVDF resin?
A: PVDF can typically operate continuously at temperatures up to around 150°C, depending on grade and application.
Q5: Do you provide technical and safety documentation?
A: Yes. Full SDS, COA, and technical support are available to assist with material selection and compliance.
