PTFE Product in Pipe Tube Rod

PTFE (Polytetrafluoroethylene) products in Pipe, Tube, Rod, and Sheet forms are high-performance fluoropolymer solutions manufactured from 100% virgin PTFE resin. Renowned for their extreme chemical inertness, high-temperature resistance, and non-stick properties, these products outperform conventional materials and even other fluoropolymers like FEP or PVDF in harsh industrial environments.

Premium PTFE Pipe/Tube/Rod/Sheet – Ultimate Chemical Resistance, High-Temp Stability & Non-Stick Performance, Ideal for Industrial Sealing, Fluid Handling & Precision Engineering

As a professional fluoropolymer manufacturer with over 15 years of experience (specializing in ETFE, PFA, FEP, PVDF, and PTFE series), we produce PTFE Pipe, Tube, Rod, and Sheet with strict quality control, adhering to ISO 9001 and FDA 21 CFR 177.1550 standards. The core advantage of all our PTFE products stems from their unique molecular structure – a fully fluorinated carbon chain that forms an impenetrable barrier against nearly all industrial chemicals, including strong acids (e.g., sulfuric acid, nitric acid), strong bases (e.g., sodium hydroxide), and organic solvents (e.g., acetone, toluene). This chemical inertness is verified by ASTM D543 testing, with 0% weight loss after 1000 hours of immersion in 98% sulfuric acid, making PTFE products indispensable in chemical processing industries where other materials like PVDF Sheet or FEP Tubing may fail under extreme corrosion.

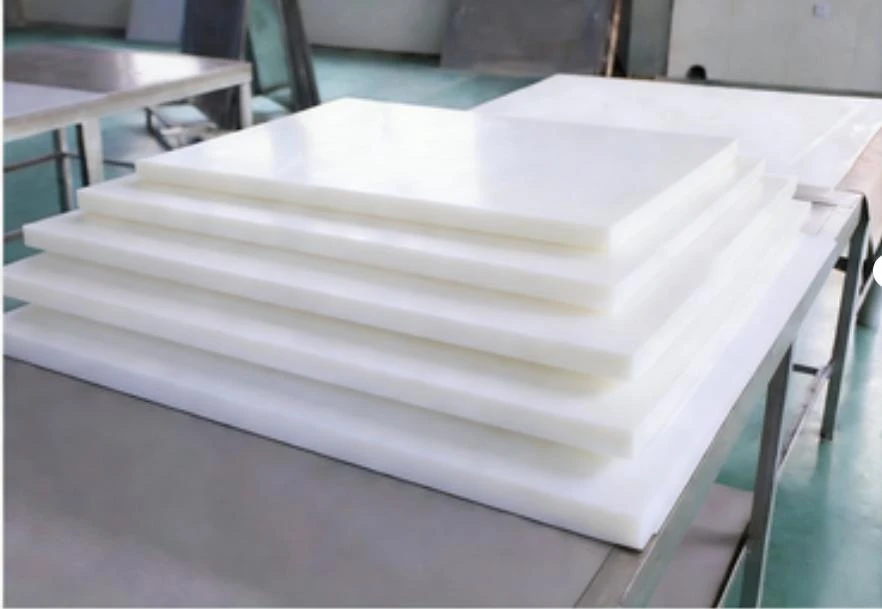

Each type of PTFE product boasts tailored characteristics to meet specific application needs. Our PTFE Sheet is available in two variants: molded and skived. Molded PTFE Sheet, made from 100% virgin PTFE resin, features exceptional mechanical strength (tensile strength ≥20 MPa, per ASTM D638) and a continuous operating temperature range of -200°C to 260°C. Unlike FEP Sheet which has a lower maximum service temperature (200°C), PTFE Sheet maintains structural integrity even in high-temperature applications such as industrial oven liners. Skived PTFE Sheet, produced by skiving molded PTFE billets, offers ultra-thin thicknesses (0.5mm-6.0mm) and superior flatness, making it ideal for precision sealing and chemical lining applications. Our PTFE Pipe and Tube, with a smooth inner surface (surface roughness Ra ≤0.2 μm), ensure minimal fluid resistance and no contamination, outperforming PVDF Tubing in ultra-pure fluid handling scenarios like semiconductor manufacturing. PTFE Rod, with excellent machinability, can be easily processed into custom gaskets, valve components, and bearings, leveraging its low coefficient of friction (0.04, per ASTM D1894) – significantly lower than PFA Rod, reducing wear and tear in moving parts.

These superior properties translate to tangible benefits for buyers across industries. In the chemical processing sector, using our PTFE Pipe for corrosive fluid transfer eliminates the risk of pipe leakage and fluid contamination, reducing maintenance costs by 60% compared to traditional metal pipes. A leading pharmaceutical company in North America adopted our skived PTFE Sheet for reactor linings, ensuring compliance with GMP standards and avoiding cross-contamination between batches. For the food processing industry, our FDA-compliant PTFE Sheet serves as non-stick conveyor belt liners, preventing food adhesion and simplifying cleaning, which improves production efficiency by 30%. In the electrical and electronics industry, PTFE Rod is used for high-frequency insulation components due to its excellent dielectric strength (≥25 kV/mm, per ASTM D149), outperforming ETFE products in high-voltage applications.

We offer a comprehensive range of specifications for PTFE Pipe, Tube, Rod, and Sheet, with customization options to meet unique customer requirements. The detailed specifications are as follows:

PTFE Sheet Specifications

PTFE Pipe & Tube Specifications

PTFE Rod Specifications

Our PTFE products find wide applications across diverse industries, including:

1) Chemical processing: Used for corrosion-resistant linings, pipes, and seals in petrochemical plants and pharmaceutical reactors.

2) Food processing: Non-stick liners for baking trays, conveyor belts, and food packaging equipment.

3) Electrical and electronics: High-frequency insulation components, wire and cable jacketing.

4) Medical: Sterile components for catheters, surgical instruments, and medical device housings.

5) Automotive: Gaskets, seals, and bearings for engines and transmission systems, reducing friction and extending component life.

We take pride in our expertise in fluoropolymer materials and our commitment to quality. All our PTFE products undergo rigorous pre-shipment inspection, with each batch accompanied by a detailed Material Test Report (MTR) confirming compliance with international standards. Whether you need PTFE Sheet for industrial sealing, PTFE Pipe for corrosive fluid handling, or custom-machined PTFE Rod components, our professional technical team is ready to provide tailored solutions. Contact us today to get a detailed quote, technical consultation, and free sample testing.

Extreme chemical resistance to nearly all acids, bases, and solvents; Continuous operating temperature range: -200°C to 260°C; Excellent non-stick surface (surface energy ≤18 mN/m); Low coefficient of friction (0.04); High dielectric strength (≥25 kV/mm); FDA 21 CFR 177.1550 compliant; High mechanical strength and durability.

25kg/woven bag, 800kg/pallet
